Heavy-cutting Circular Saw Machines
You Professional Heavy-cutting Circular Saw Machines Suppliers！
Shandong Wanli Precision Machinery Co., Ltd. under the VANSE Group is a high-tech enterprise integrating scientific research, production, manufacturing and sales. Our Product Circular saw machine. Architecture, Car manufacturer,metal cutting, aviation industry, Shipbuilding, Metallurgy and Metal Craftsmanship etc.
Why Choose Us
Our Factory
It has more than 200 mechanical R & D engineers and production engineers, and covers an area of 66,000 square meters, with a workshop area of 26,000 square meters.
Our service
One Stop Sawing Service,Timely After-Sales Service and Ease of Purchase. Multiple Solutions to Meet Different Needs.
Our Certifications
Our machine's technology is at the international leading level. It has obtained more than 120 pieces of Patent Certificate and passed the ISO 9001 quality management system certification.
Sale Market
The company's products sell all over the world with stable performance and reliable quality; Now days, we have lots of Clients in Occident, Australia, Southeast Asia and Middle East countries.
Product Specification
We offer the following Product Specifications：
|
Specifications |
HD-160X 2-Axis |
|
|
Cutting Capacity |
Round bar (mm) |
40-160 |
|
|
Square bar (mm) |
40-110 |
|
|
Trimming length (mm) |
10-100 |
|
|
Single feed length (mm) |
10-800 |
|
|
Remnant length (mm) |
80 |
|
|
Perpendicularity Tolerance (mm) |
±0.05/100 |
|
Circular Saw Blade |
Dimensions (mm) |
Φ460 x Φ50 x T2.7/t2.25 |
|
|
Pin hole (mm) |
Φ90/4/Φ14 |
|
|
Number of teeth (Z) |
40, 54, 60, 72, 80, 100, 120 |
Features of Heavy-cutting Circular Saw Machines
Mechatronics control

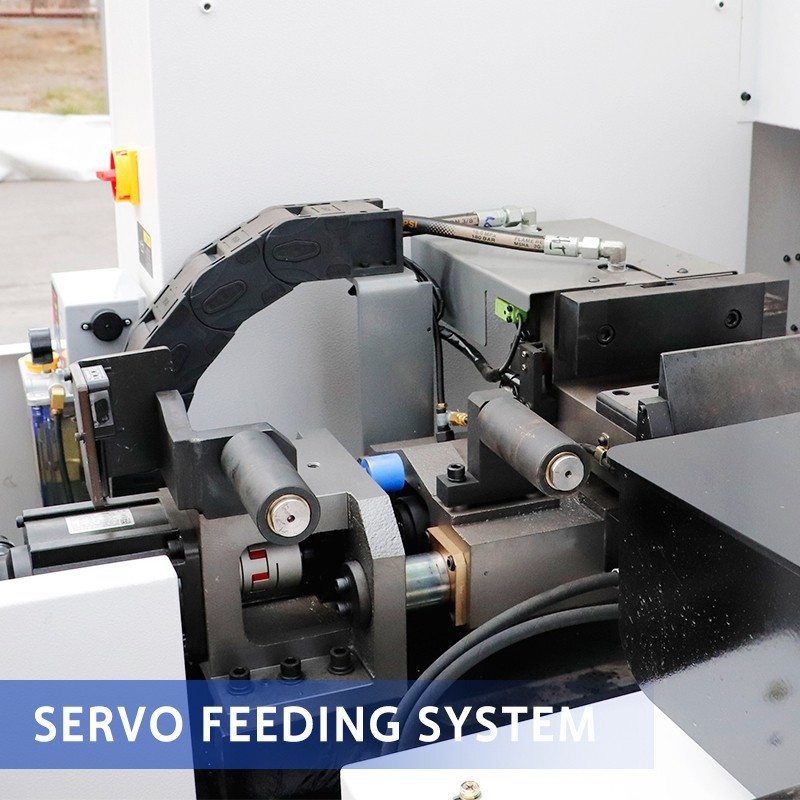

High-speed precision cutting with an almost ground-finish surface and excellent repeatability is made possible by numeric control, servo motor feeding, cut-off, and bar feed, along with a vastly improved carbide circular saw machine and blade.
Cutting faster
CS-S、CS-N Series: Suitable for cutting most steels and alloys, ranging from structural to stainless steels (SS, SC, SUS). Cutting speed is 5 times faster than machines using HSS blades..
CS-F Series: Designed especially for cutting nonferrous metals, such as aluminum alloy, copper, and plastic steel. It cuts 10 times faster than a conventional HSS blade machine.
Enhance blade service life
Rigid structure and anti-vibration design ensure excellent repeatability, accurate cutting, and longer circular saw machine blade life.
Less material consuming
Vastly improved carbide circular saw blade is thinner, achieving less material consumption and resulting in less blade wear and less power consumption.
Components of Heavy-cutting Circular Saw Machines
Separating system
Automatically separates trim edge cuts and residue into different storage tanks.
Overhead clamping vise jaw
Ensures materials are clamped firmly, minimizing vibration while cutting a single bar or two bars of the same size simultaneously
Unique gear head design
The gear transmission system ensures smooth cutting with high efficiency, less noise, and lower power consumption, further extending blade life.
Floating swivel-able rear vise saddle
This hydraulic floating rear vise saddle, linked to the servo motor and ball screw, is excellent for gripping and handling even bowed or bent bars, ensuring minimal wear and maximum cutting accuracy.
Up-to-date module
Modularized oil mist spraying mode can be set for either intermittent or continuous spraying to optimize mist oil consumption. An error signal notifies the operator when cutting oil needs refilling.
Touch screen control
Fuzzy, graphic, colorful, and digital, the tactile control panel allows easy presetting for various workpieces and features an automatic detector display that indicates operational errors and causes of malfunctions.
Magazine table
The magazine table holds up to 6 meters of material for loading bars of different sizes. A customized bar loading system is available for various applications.
Cutting deviation detecting system
The screen displays the saw blade deviation value, and operator can set a max limit value to remind the user of the cutting status warning, which realizing numeric control to help users in all aspects.
