Circular Blade Type Sawing Machine
Machine Model
The main working component of this machine is a high-speed rotating circular saw blade, which is capable of cutting with extremely high speed and precision. By adjusting the rotational speed and feed speed of the saw blade, metals of different specifications and shapes can be cut. In addition to the sawing function, the circular saw machine can also perform trimming, cutting and other processing operations. It is widely used in furniture manufacturing, construction industry and other industries as an efficient and precise metal processing equipment.

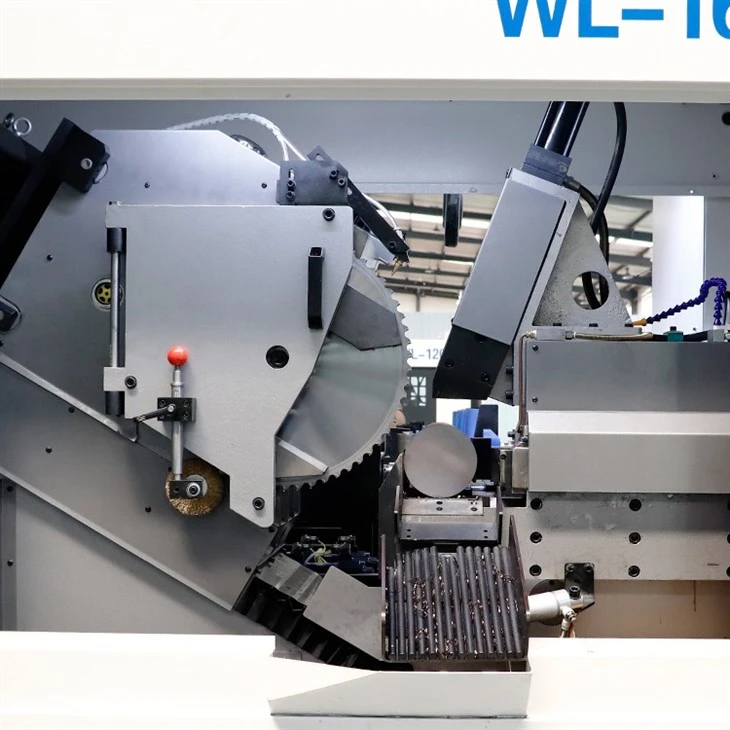

Product Picture
The machine has fast cutting speed, wide cutting range, and smooth cutting. It is suitable for cutting fields such as construction, steel, automobile, aviation, military industry, shipbuilding, forging, and non-ferrous metals to meet the different sawing needs of all customers.
| PRODUCT PARAMETERS QUICK CUTTING ACCURATE CUTTING |
||
| Model | WL-160XG | |
| Cutting capacity | Round bar(mm) | 50~160 |
| Square bar(mm) | 50~110 | |
| Round tube(mm) | 50~160 | |
| Square tube(mm) | 50~110 | |
| Head Spindle | TCT superhard circular saw blade | φ480t2.7 |
| Spindle motor(kw) | 15 | |
| Spindle speed(rpm) | 20~120 | |
| Feeding Clamps | Feeding Drive Mode | AC Servo Motor+Ball Screw |
| Feeding Clamp Way | Hydraulic Clamped | |
| Trim Length(mm) | 10~99(No cutting head is optional) | |
| Remnant Length(mm) | 85+α | |
| Single Feed Length(mm) | 10~800 | |
| Automatic feeding device | Length of Material(mm) | 3000~6000 |
| Supply Mode | Preloading/Hydraulic Lifting | |
| Hydraulic device | Type of hydraulic pump | Variable displacement piston pump |
| Hydraulic drive motor(kw) | 3.7(4P) | |
| Hydraulic System Rated Pressure(MPa) | 7 | |
| Hydraulic Oil Capacity(L) | 120 | |
| Weight & Size | Weight(Machine+Rack) (kg) | 6700 |
| Size(mm) | 7700x3400x2250 | |
Detailed Description

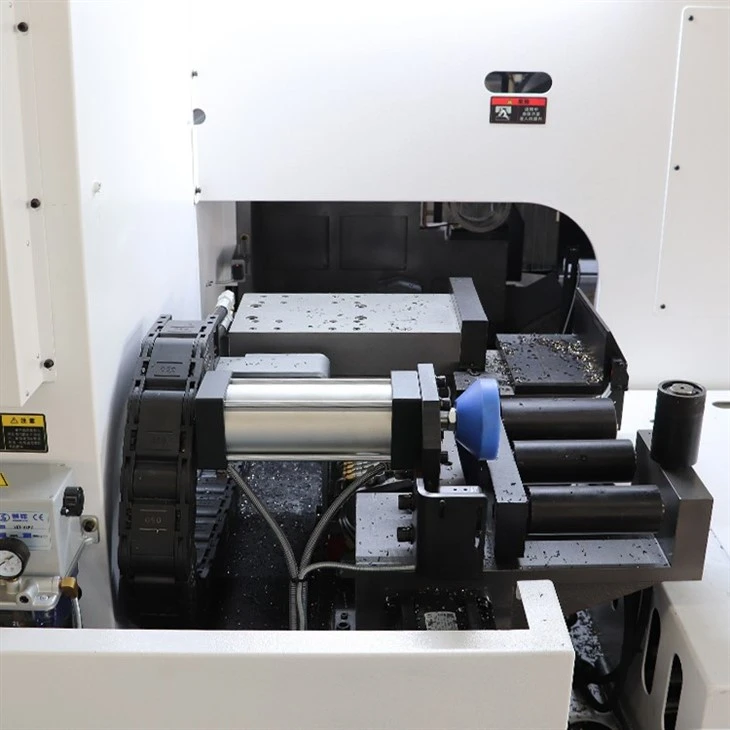

The main system consists of man-machine interface, discharging device, servo feeding system, hydraulic support, oil mist system, servo motor, etc.
Factory Display
Our company has focused on researching circular saw machines for many years, has advanced technology and perfect after-sales service, and has SE, ISO9001 quality management certification.
Exhibition Display
We can do the following:
1. One stop sawing service
2. Timely after-sales service and ease of purchase
3. Multiple solutions to meet different needs
4. Continuous innovation and technology research and developmen
