Steel Rod Cutting Machine

Name: China Steel Rod Cutting Machine Manufacturers Suppliers Factory - Customized Service
Brand: Wanli
SKU: 235479989

The new Wanli high-speed circular saw cutting machine metal sawing equipment is made of advanced accessories and precision machining equipment, cutting speed is fast, cutting smoothness is good, improving work efficiency and reducing enterprise costs.
1.The cutting feed mode of the spindle box is oblique cutting, driven by a servo motor, and the feed speed can be adjusted arbitrarily.
2.The three-point clamping design of the saw blade reduces the vibration of the saw blade and improves the life of the saw blade.
3.The sawing and feeding system is controlled by AC servo motor, Stable cutting and accurate feeding.
4.The equipment integrates the functions of automatie turnover, automatic feeding, residue separation, automatic chip removal, etc., saving 80% of labor costs.
5.Humanized touch screen operating system, easy to operate,
6.The equipment has manual and fully automatie operation modes.

Send Inquiry

Product Introduction

Product introduction

110

Support customization

Our new high speed circular saws can be customized to a variety of models and specifications of equipment, according to your sawing requirements, to provide a variety of cutting solutions to meet different customers of a variety of cutting types.

a494568fda56286842136e76e2400ea

Product details

Shandong Wanli high-speed circular saw machine model WL-110XN new automatic cutting saw machine, cutting range: round bar 20-110 (mm), square tube 20-75 (mm).

The saw blade adopts a special hard alloy blade head, which is specialized in cutting various non-ferrous metals, round bars, hexagonal bars, steel pipes, thick walled pipes, thin-walled pipes, trapezoidal materials, etc.

110XN02

The device has manual and fully automatic operation modes, a user-friendly touch screen operating system, and simple operation.

110XN06

The whole is cast as a whole, and the hydraulic clamp and downward pressure device tightly clamp the workpiece to prevent the workpiece from being inaccurate due to the vibration of the saw blade, thereby increasing the life of the saw blade and ensuring precision cutting.

110XN03

The high power of the spindle box improves work efficiency. The sawing and feeding system is controlled by an AC servo motor, ensuring stable cutting and accurate feeding.

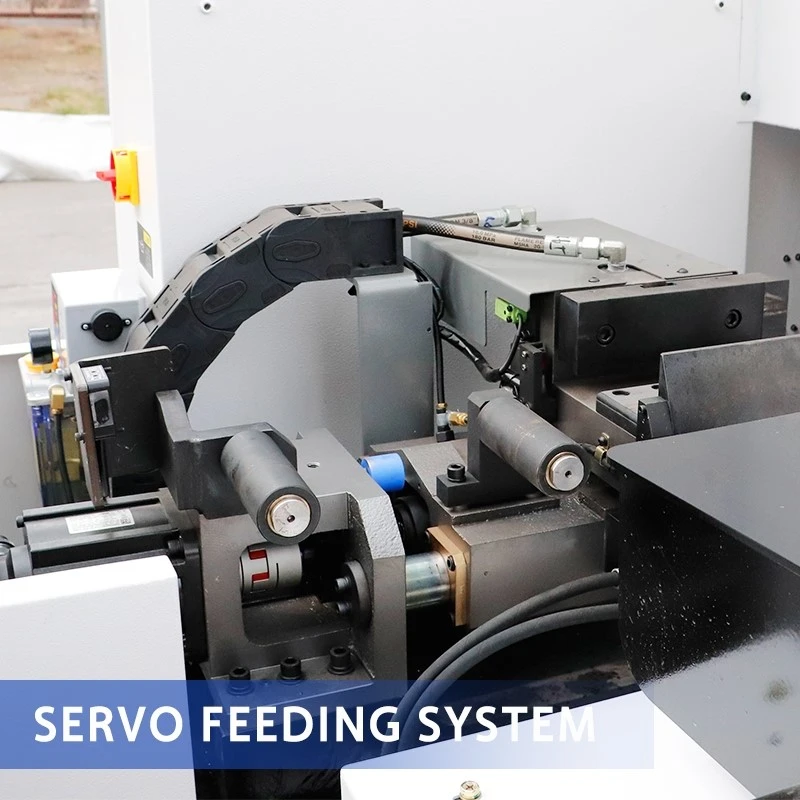

110XN07

The CNC metal high-speed cold cutting circular saw machine WL-110XN is equipped with a rear automatic flipping frame, chip removal device, customizable front feeding frame, and environmentally friendly oil mist collection system.

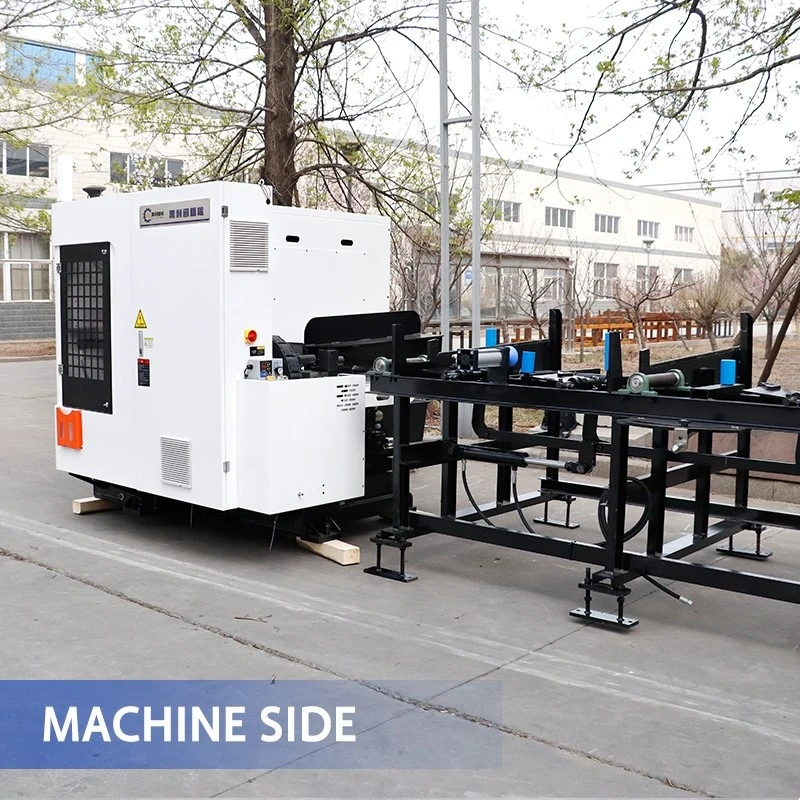

110XN05

PRODUCT PARAMETERS QUICK CUTTING ACCURATE CUTTING


Model		WL-120XG
Cutting capacity	Round bar(mm)	20~120
	Square bar(mm)	20~85
	Round tube(mm)	20~120
	Square tube(mm)	20~85
Head Spindle	TCT superhard circular saw blade	φ380t2.6
	Spindle motor(kw)	11/15
	Spindle speed(rpm)	20~80
Feeding Clamps	Feeding Drive Mode	AC Servo Motor+Ball Screw
	Feeding Clamp Way	Hydraulic Clamped
	Trim Length(mm)	10~99(No cutting head is optional)
	Remnant Length(mm)	75+α
	Single Feed Length(mm)	10~800
Automatic feeding device	Length of Material(mm)	3000~6000
Automatic feeding device	Supply Mode	Preloading/Hydraulic Lifting
Hydraulic device	Type of hydraulic pump	Variable displacement piston pump
	Hydraulic drive motor(kw)	3.75(4P)
	Hydraulic System Rated Pressure(MPa)	7
	Hydraulic Oil Capacity(L)	110
Weight & Size	Weight(Machine+Rack) (kg)	6000
Weight & Size	Size(mm)	7700x3200x2250

Company Profile

The company has 10,000 square meters dust-free assembly workshop, using Swiss KEL-VARIA grinding center, German WALDRICH heavy-duty gantry milling machine, Japanese KURAKI milling and boring machine, Swiss DIXI high-precision coordinate boring machine, imported high-precision rail grinder, precision horizontal machining center, high-speed laser cutting machines, fully computerized automatic sheet metal spraying lines and other first-class processing machines and complete sets of equipment provide reliable guarantee for the production of high-precision machine tool parts and complete machine products.

Why Choose Us

01/

High Quality
Our products are manufactured or executed to very high standards, using the finest materials and manufacturing processes.

02/

Our Certificate
CE,ISO9001

03/

Professional Team
The members of the team are highly skilled and proficient in their respective roles and possess the necessary education, training, and experience to excel in their jobs.

04/

One-stop Solution
At our manufacturing facilities, we provide a complete package that includes everything required to get you started, including training, installation and support.

High Speed Precision Circular Saw Machine

This is the 120XG type Cnc Circular Saw Machine, which uses a servo motor for feeding and one-button start system, making the operation simple and fast.

Circular Saw Machine High Speed Metal

Circular saw machine high speed metal is a widely used high-speed metal circular saw machine, especially suitable for all kinds of non-ferrous metal bar cutting high-speed precision.

Automatic High Speed Metal Circular Saw Machine

The entire work cycle: Feeding, clamping, cutting, feeding all CNC fully automatic, manual feeding and complete material collection.

Automatic Circular Saw Cutting Machine

Automatic Circular Saw cutting Machine is a widely used high-speed metal circular saw machine, especially suitable for all kinds of non-ferrous metal bar cutting high-speed precision.

CNC Circular Saw Machine

CNC Circular Saw Machine is a highly automated cutting equipment that combines computer numerical control (CNC) technology to achieve high-precision and efficient cutting operations.

High Speed Circular Saw Machine

The high speed circular saw machine produced by the company are highly praised by customers for their advantages such as precise cutting, smooth operation, energy saving and high efficiency, and simple operation.

Bar Cutting Machine Circular Saw Machine

A bar cutting machine is a machine specially designed for cutting metal, usually equipped with a high-speed rotating saw blade that can quickly and accurately cut metal bars into the required length and size.

Steel Circular Saw Machine

Steel circular saw machine is a widely used high-speed metal circular saw machine, especially suitable for all kinds of non-ferrous metal bar cutting high-speed precision.The key control unit man-machine interface, servo motor, frequency changer, PLC all uses Japanese Mitsubishi brand.

Automatic Metal Circular Saw Machine

An automatic metal circular saw machine is a machine tool that automatically cuts metal materials using a circular saw blade. It is designed to simplify the cutting process and increase production efficiency.

What Is Steel Rod Cutting Machine?

The steel rod cutting machine is a fully automatic cutting and shearing machine. After the operator set the cutter, the whole bundle of bar material is placed, and the blanking weight and bar diameter are input on the touch screen, and then the switch is turned to automatic, it can be fully automatic production. Except for loading (carrying the entire bundle of bars to the rack) and discharging (moving the cut bar), the intermediate process does not require manual operation.
The steel rod cutting machine are suitable for cutting carbon steel and alloy structural steel bars. The head and tail of the bar should be able to enter the cutter. If the material is a coil, need straighten and then cut into bars.

Our Factory

productcate-1-1

FAQ

Q: What machine is used to cut steel rods?

A: A steel rod cutting bandsaw is a machine with a double-column structure. It is available in both semi-automatic and automatic type. It is a heavy machine with a weight of more than 1800 kg.

Q: What is steel cutting machine?

A: Steel bar cutting machine is used for rapidly cutting various gauge steel wire. These cutting machines enable users to slice steel wire, steel bar, brass wire, aluminium wire, polycarbonate fibre, PVC pipe and various other wires into very thin gauge sizes.

Q: What is the use of rebar cutting machine?

A: A bar- Cutting machine is a machine used to cut metal bars, rods, and reinforced steel TMT rebars. They are available in , semi-automatic, models. Bar-cutting machines are used in a variety of industries, including civil construction, manufacturing, and engineering.

Q: What is the rod cutting problem?

A: We are given a rod of size 'N'. It can be cut into pieces. Each length of a piece has a particular price given by the price array. Our task is to find the maximum revenue that can be generated by selling the rod after cutting( if required) into pieces.

Q: What tool is used to cut rods?

A: A hacksaw is a manual tool great for cutting metal rods with a small diameter. A bandsaw is a powered tool that can cut large metal rods with a thickness of up to 4 inches. A cold saw is a circular saw designed to cut metal with minimal heat generation.

Q: What is the name of steel cutting machine?

A: The metal cutting machines include - lathe, drilling machine, milling machine, boring machine, grinding machine and machining center, etc. The machine tools are called the "mother machines" as they make other machines possible.

Q: Is a rebar cutting machine safe?

A: Always wear eye protection whenever using this equipment! Danger: There is a chance of pieces of rebar being shot off at high speeds. This could cause serious injury or death to the operator or bystanders. Keep bystanders, hands, feet and all other body parts clear of the cutting area at all times.

Q: Can you cut rebar with a hacksaw?

A: Using a hacksaw to cut rebar is the most basic, cheapest, and labor-intensive method. The user requires a lot of patience and arm-strength to cut reinforcement steel. To use a hacksaw, first, you have to measure the rebar and mark the points you want to cut. Then you have to clamp the rebar for safety.

Q: What is the complexity of rod cutting problem?

A: Time Complexity: O(N ^ 2) as for each length we are traversing from 0 to that particular length to calculate our max possible profit for the current length. Space Complexity: O(N ^ 2) as extra space for storing the max possible profit for each length of rod has been used.

Q: How do you cut a steel rod straight?

A: A high tension hacksaw is ideal, though as long as there's some type of mechanism for tightening it, it will work. A tight blade won't bend, is less likely to break, and will help you cut straight.

Q: What tool is used to cut rods?

Q: What is the best tool to cut rebar with?

A: If you need a light-duty rebar cutting tool, BN Products' High-Tensile Bolt Cutters are a great option. These cutters are designed to cut up to #4 bar, grade 60. With long handles and powerful jaws, these bolt cutters can tackle a variety of jobs without breaking the bank.

Q: What's the fastest way to cut rebar?

A: They come in several sizes, but the 4-inch and 4.5-inch grinders are the most often used ones for cutting rebar. They are more favored since they can make quick, harsh cuts. These can be used to cut welding wire fences, angle irons, rebar, and rusted bolts.

Q: What is the fastest way to cut steel?

A: The most effective choice for this use is typically a blade with a carbide tip. You'll be astonished at what kinds of metals a circular saw can cut through with the right blade set in your tool. For instance, a lot of experts utilise their circular saw to quickly cut through rebar.

Q: What PPE is needed for rebar cutting?

A: Always wear gloves and eye protection when handling and tying rebar. Wear additional PPE as required, which may include a hard hat, high-visibility safety vest, hearing protection and work boots. Tuck in shoelaces and pant legs to prevent hang-ups when walking through flatwork.

Q: What types of steel rods can a steel rod cutting machine cut?

A: Steel rod cutting machines can typically handle various types of steel rods, including carbon steel, alloy steel, and stainless steel. The exact type of steel that can be cut will depend on the machine's specifications and capabilities.

Q: What types of cutting mechanisms do steel rod cutting machines use?

A: Steel rod cutting machines can use various cutting mechanisms, including sawing, shearing, and laser cutting. The specific cutting mechanism used will depend on the machine's design and intended use.

Q: How do I choose the right steel rod cutting machine for my needs?

A: When choosing a steel rod cutting machine, consider the type and thickness of the steel rods you need to cut, as well as the volume of work you need to perform. Additionally, consider the machine's cutting capacity, speed, accuracy, reliability, ease of use, and cost. It's also important to research different brands and models and read reviews from other users to ensure that you choose a machine that meets your needs and preferences.

Q: How do I maintain and care for my steel rod cutting machine?

A: To maintain and care for your steel rod cutting machine, follow the manufacturer's guidelines and schedule regular maintenance appointments. This may include cleaning the machine regularly, lubricating moving parts, replacing worn-out components, and inspecting the machine for any signs of damage or wear. Additionally, store the machine properly when not in use to protect it from dust, moisture, and other potential hazards.

Q: What safety precautions should I take when operating a steel rod cutting machine?

A: When operating a steel rod cutting machine, always wear appropriate personal protective equipment (PPE), such as safety glasses, gloves, and ear protection. Additionally, follow the manufacturer's guidelines and safety protocols carefully. Avoid placing your hands or fingers near the cutting blade, and keep the work area clean and organized to prevent accidents.
