Stainless Cutting Circular Saw Machine
Machine Model
WL-200PZ FOR CUTTING METAL MATERIALS. TCT blade saw machine
It is suitable for processing and cutting various copper, aluminum, iron, stainless steel bar materials and thick tubes
2. Precision processing of stainless steel, iron, copper, aluminum, special-shaped metal bars and thick tubes. For diameters of 55mm or less, multiple pieces can be cut, with 3 to 25 pieces per cut (depending on the diameter).
3. Precision processing of complex-shaped, super-thick stainless steel, iron, copper, aluminum, special-shaped metal bars and thick tubes.
4. Precision processing of stainless steel, iron, copper, aluminum, and special-shaped metal bars and thick tubes with a diameter of less than 50. The surface of the cut should be clean, free of burrs and black edges.
5. No need for a second grinding and processing. It is specifically designed for long and short metal bars as well as thick tubes.

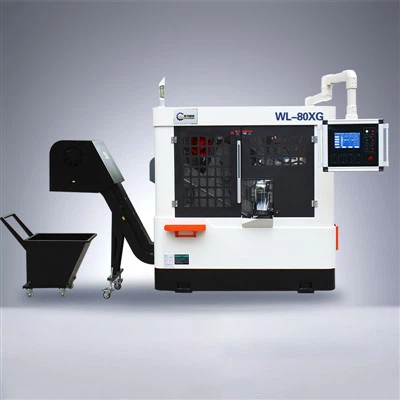

Product Picture
Stainless steel cutting circular saw machine
In the world of precision machining, every cutting is a challenge to craftsmanship and the pursuit of quality. Today, we are going to introduce this high-efficiency stainless steel cutting circular saw machine, which is specially designed for professionals who pursue precision and efficiency.
This highly efficient stainless steel cutting circular saw machine is undoubtedly a breakthrough in the field of metal processing. It not only improves work efficiency and reduces production costs, but also becomes the new favorite in the industry with its excellent performance and reliable quality. Whether you are an industry expert or a hobbyist, this circular saw machine will be a rare and ideal choice for you
| PRODUCT PARAMETERS QUICK CUTTING ACCURATE CUTTING |
||
| Model | WL-200XG | |
| Cutting capacity | Round bar(mm) | 80~200 |
| Square bar(mm) | 80~150 | |
| Round tube(mm) | 80~200 | |
| Square tube(mm) | 80~150 | |
| Head Spindle | TCT superhard circular saw blade | φ630t3.4 |
| Spindle motor(kw) | 30 | |
| Spindle speed(rpm) | 20~60 | |
| Feeding Clamps | Feeding Drive Mode | AC Servo Motor+Ball Screw |
| Feeding Clamp Way | Hydraulic Clamped | |
| Trim Length(mm) | 10~99(No cutting head is optional) | |
| Remnant Length(mm) | 120+α | |
| Single Feed Length(mm) | 10~800 | |
| Automatic feeding device | Length of Material(mm) | 3000~6000 |
| Supply Mode | Preloading/Hydraulic Lifting | |
| Hydraulic device | Type of hydraulic pump | Variable displacement piston pump |
| Hydraulic drive motor(kw) | 5.5(4P) | |
| Hydraulic System Rated Pressure(MPa) | 7 | |
| Hydraulic Oil Capacity(L) | 120 | |
| Weight & Size | Weight(Machine+Rack) (kg) | 9800 |
| Size(mm) | 8300x3850x2570 | |
Detailed Description
Focus on the research and development and production of high-speed metal circular saw machines
Processing and cutting equipment: aluminum cutting machine, copper tube cutting machine, pipe cutting machine, high-speed circular saw machine, metal circular saw machine, circular saw machine, fully automatic pipe cutting machine, aluminum profile cutting machine.
With years of industry experience and rich customer service experience
With over fifteen years of deep industry experience, we have served thousands of clients and built a professional service system, making us a trusted partner for our customers.
Ultra-fast delivery and immediate response
We offer 24-hour express delivery and provide 24-hour online customer service to respond to demands at any time and solve problems efficiently.
Free customized design plan
We have established a full-process standardized quality management system, used information technology to monitor and trace, and continuously optimized it to ensure the stability of product quality.
Factory Display
Our capabilities are one of our core competencies. We have an experienced and skilled R&D team that continuously launches innovative metal circular saw machine products. Our machines feature high efficiency, precision and ease of operation to meet a variety of metal cutting needs.
Exhibition Display
This metal circular saw machine exhibition won the favor of manufacturers. The exhibiting equipment operates well, is stable and reliable, and manufacturers are very interested in its performance. Through exchanges with technical engineers and learning from speeches, manufacturers have a more comprehensive understanding of the application of metal circular saw machines and further improved their production technology level.
